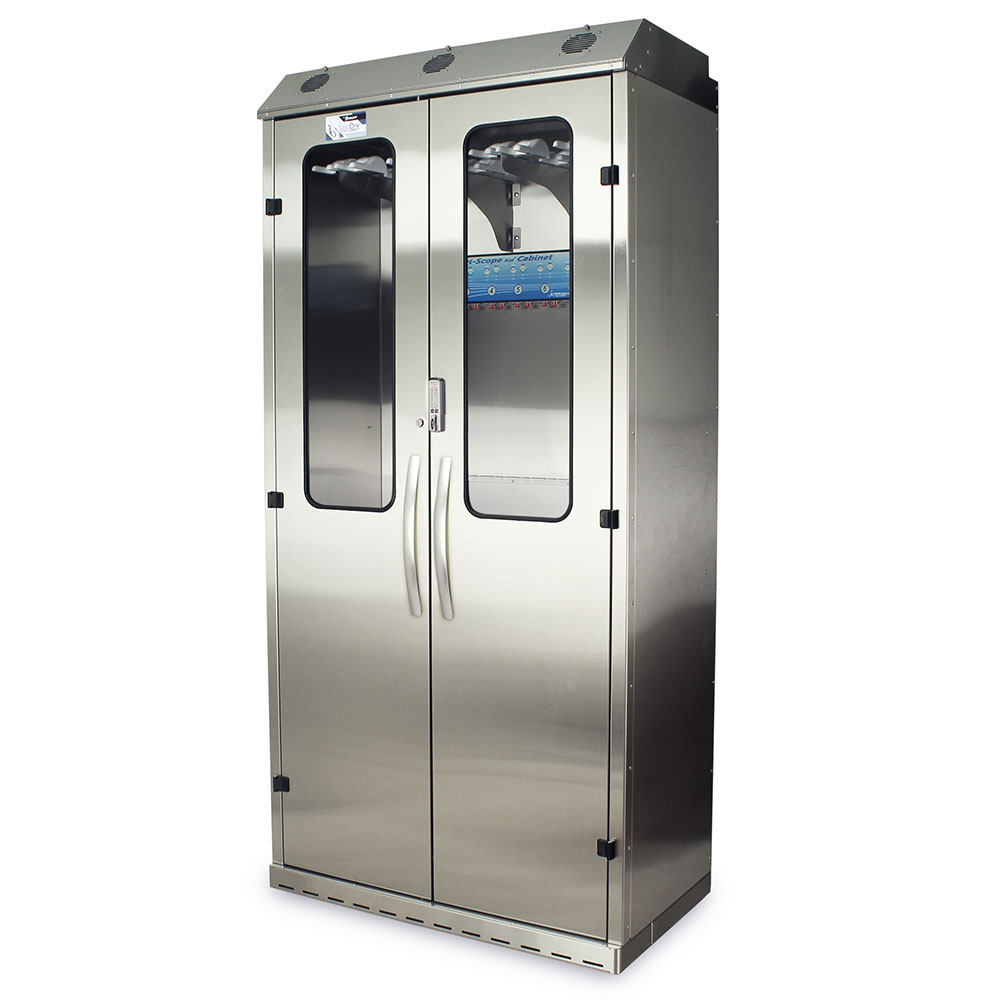

SCSS8044DREDP-DSS3316 Endoscope Cabinet Storage - Quarter Left Closed

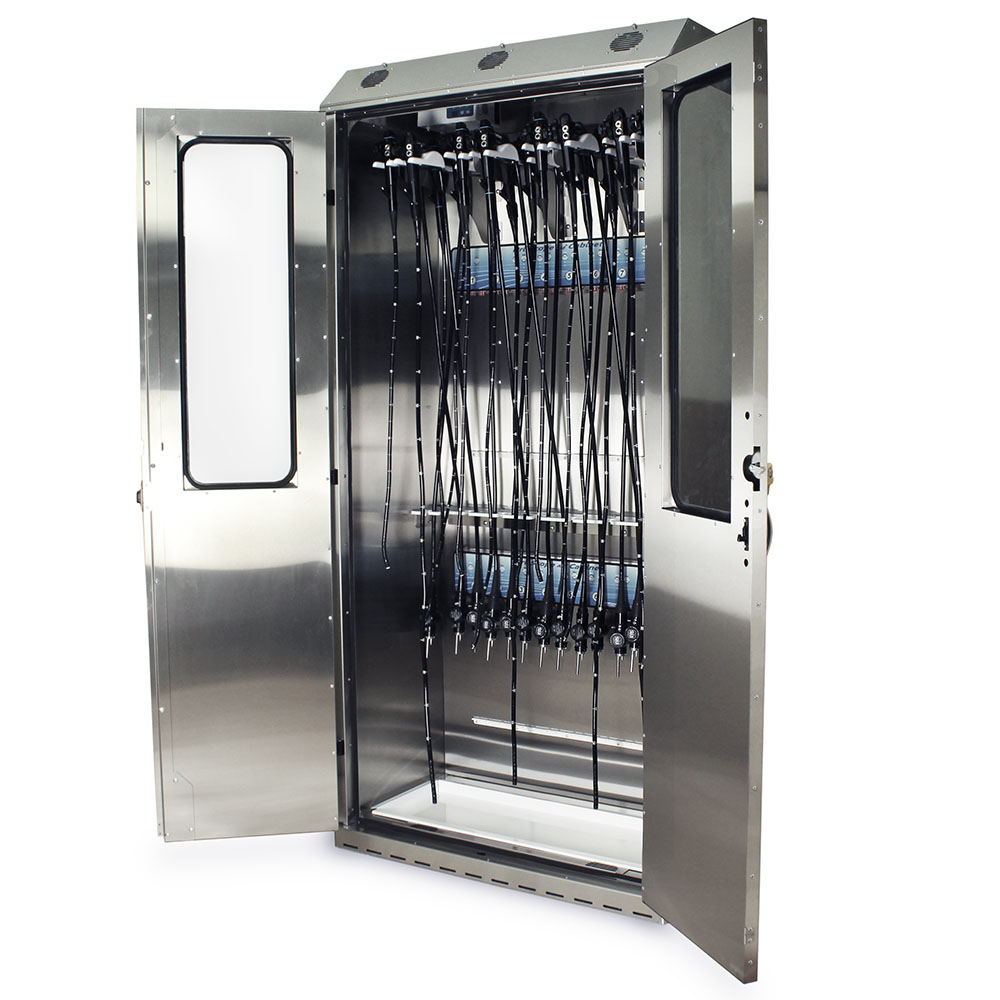

SCSS8044DRDP-DSS3316 Endoscope Drying Cabinet Supplier - Quarter Left Open with Scopes

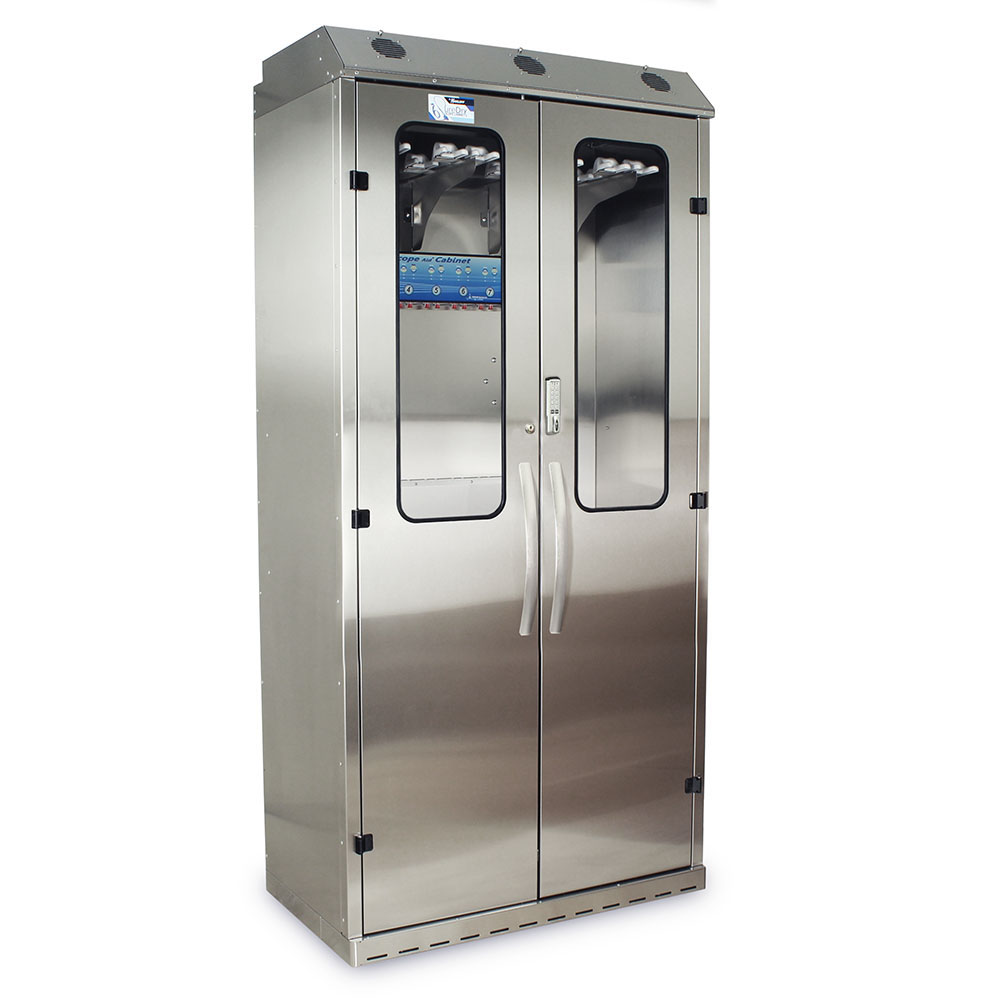

SCSS8044DREDP-DSS3316 Endoscope Cabinet Storage - Quarter Right Closed

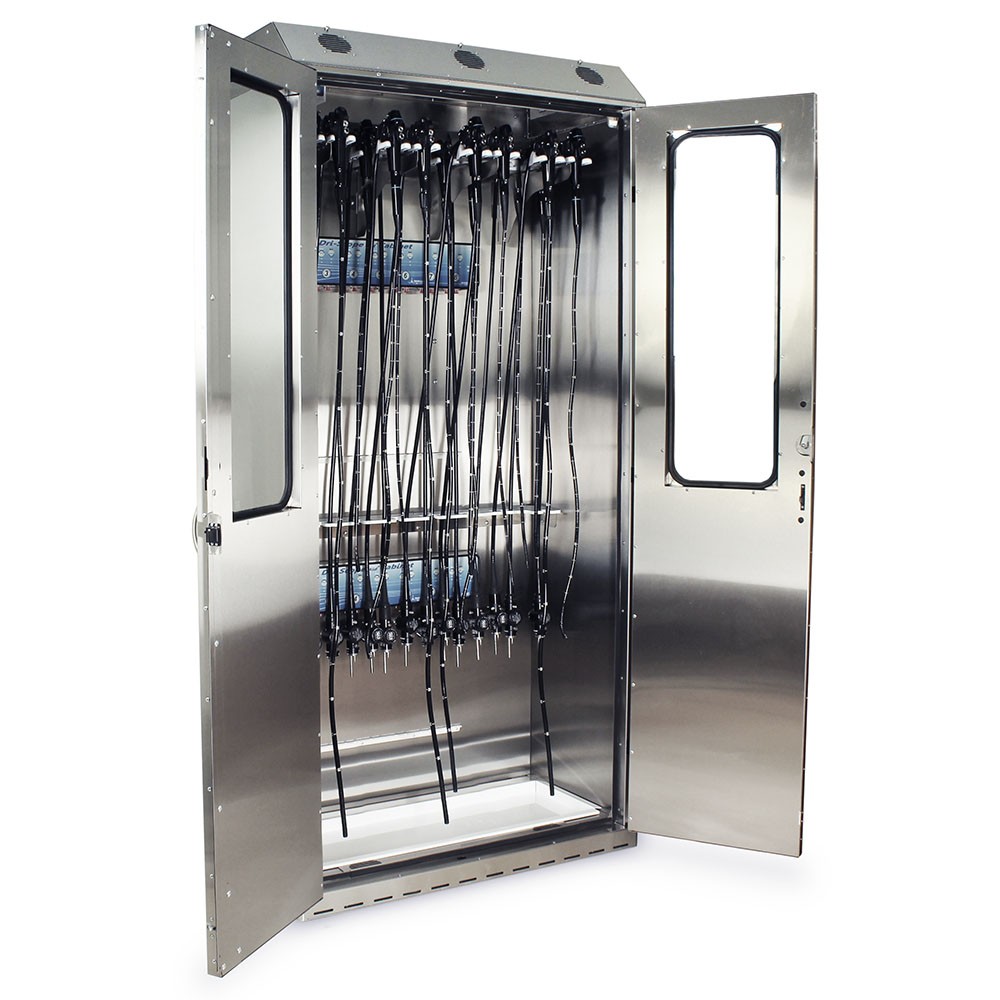

SCSS8044DRDP-DSS3316 Endoscope Drying Cabinet Supplier - Quarter Right Open with Scopes

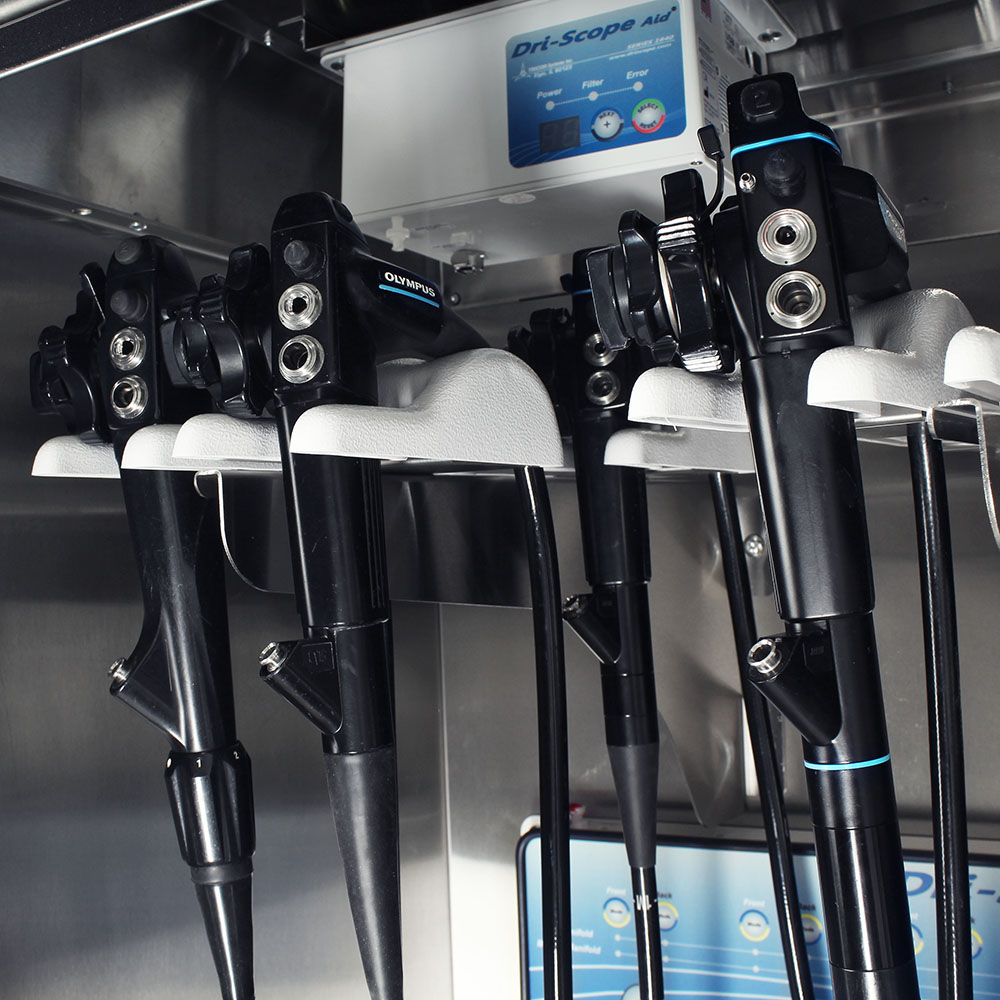

SCSS8044DRDP-DSS3316 Endoscope Drying Cabinet Supplier - Scope Closeup
SCSS8044DRDP-DSS3316 Endoscope Drying Cabinet Supplier - Drip Pan

SureDry High Volume 16 Scope Cabinet with Dri-Scope Aid®, Stainless, E-Lock, SCSS8044DREDP-DSS3316

With increased storage capacity and maximum manueverability for the attachment and removal of scopes, the High Volume 16-scope cabinet cabinet from Harloff is the ideal endoscope cabinet storage and drying solution for busy gastroenterology facilities. The cabinet features increased spacing between scope holders, a positive pressure HEPA filtered drying system with an unmatched three intake fans and two exhaust fans, an easy to replace filter system without needing to open the cabinet doors and the industry leading internal lumen drying system, Dri-Scope Aid®. This combination provides facilities with the assurance that they will be able to meet all current and anticipated future guidelines for external and internal drying of endoscopes, providing their patients the best possible assurance of infection prevention. The Dri-Scope Aid® system, paired with the SureDry High Volume Endoscope Storage and Drying Cabinet, provides a complete drying system for your facility.

Ask about our upgrade to an LED internal light package. Click here for details.

Download Product Spec Sheet

Available Colors

Color Options

SKU: SCSS8044DREDP-DSS3316 Categories: , , , , Tags: , ,

Description

Choose the SureDry High Volume endoscope cabinet storage and drying system for your high traffic facility. Perfect for busy units with frequent movement of scopes, SureDry Scope Cabinets feature an external HEPA filtered positive pressure drying system paired with Dri-Scope Aid®, the industry leading internal lumen drying system. The Dri-Scope Aid® Cabinet supplies HEPA-filtered air to all internal channels to aid in drying endoscopes with an automated drying cycle for improved turn-around time, and a continuous venting cycle for overnight storage.

Specifications & Details

Features

• Industries most spacious scope cabinet allows for easy hanging and retrieval of all scope types
• Positive pressure fully redundant fan system
• Industries only unit with 3 intake and 2 exhaust fans
• Fan run time is fully adjustable and activated each time cabinet is closed
• HEPA filter removes 99.7% of particulates, .03 Microns
• Holds 16 scopes with our secure adjustable mounting system
• Replaceable HEPA Filter system without removal of scopes
• Medical grade electrical system
• Tempered glass double doors
• Basic electronic pushbutton lock
• Key lock override
• Factory set user and supervisor code
• Cabinet may be programmed in the field
• Multiple locking options available including badge entry
• Easy to clean removable drip tray
• Cabinets are delivered fully assembled
• Stainless steel is commonly used in the manufacturing of medical devices due to its rust and corrosion resistance, anti-bacterial properties and ease of cleaning and sterilization
• 12-Year Manufacturer’s Warranty on shipments to US and Canada, 5-Year Manufacturer’s Warranty on all other International shipments.
• 1-Year Limited Warranty on any bought-out parts

Dri-Scope Aid® Features
• Significantly improves drying of internal channels
• HEPA filter offers a 99.97% retention rate of particles that have a size> 0.3µm
• Provides constant air delivery through all internal endoscope channels
• Short drying cycle for quick turn-around time
• Continuous venting cycle for overnight storage
• Automatic high-pressure shutoff
• Fulfills forced air recommendations
• Self-adjusting high-pressure regulation

Dri-Scope Aid® Ease of Operation
• Hands-free operation
• Visual display of purging times
• Simple to attach individual scope connectors
• Works with all major endoscope brands
• Filter replacement indicator light
• Dries 1 to 16 endoscopes

Accessories Included

• Dri-Scope Aid®, industry leading internal lumen drying system

Optional Accessories

• Brighten your cabinet with fully dimmable overhead LED lighting which triggers on door open/close

Overall Cart Dimensions

• 93” H x 44” W x 24” D (236.2 cm x 111.8 cm x 61 cm)
• Weight: 384 lbs (174.2 kg)
• Approximate shipping dims: 33" H x 50" W x 97" D (83.8 cm x 127 cm x 246.4 cm)
• Approximate shipping weight: 484 lbs (219.5 kg)

Additional information

Weight 384 lbs
Dimensions 24 × 44 × 93 in
